Product Details:
|
| Overall Dimension: | 10500x2500x3290,3330mm | G.V.W: | 18000(Kg) |
|---|---|---|---|
| Wheel Base: | 5700mm | Front Tread: | 2057,2080,2100mm |
| Rear Tread: | 1838,1860,1890mm | Motor Power: | 150/260kW |
| Battery Type: | Lithium Iron Phosphate Battery | Power Capacity(kW·h): | 350.07(kwh) |
| Max Speed: | 69km/h | Driving Range: | 350-370km (Full-Loaded With A/C Opened) |
| Rated Seats Number: | 24+3+1 | Rated Pessanger Rated: | 92/19-40,85/19-40,76/19-40 |
| Tyres: | 275/70R22.5, 6pcs | ||
| High Light: | 10 Meter Electric Vehicle Bus,Electric Vehicle Bus 90 Passengers,90 Passengers Electric Public Bus |
||
New energy 10 Meter Electric City Bus 90passengers Loading Ability with 350 KWH battery
New energy 10 Meter Electric City Bus Detailed Specification:
| Model# | XMQ6106AGBEVL34 | ||
| Basic specs | Overall dimension (length×width×height) (mm) |
1055*2500*3290 | |
| Wheel base(mm) | 5900 | ||
| Seats number | 24+3-1 | ||
| Total weight(kg) | 18000 | ||
| Max vehicle speed (km/h) | 69km/h | ||
| Spring Numbers | - | ||
| Tire quantity, Model | 275/70R22.5, 6pcs | ||
| Motor | Motor type | Permanent magnetic synchronizer | |
| Total Power(kw) | 260/353kw | ||
| battery | Battery type | LFP (lithium iron phosphate) | |
| Rated Capacity(KWH) | 350.07 | ||
| Driving Mileage (NEDC) | 350-370km | ||
| Gear | Gear box | Single-reduction (AT) | |
| Tyre and Brake | Brake | Front disc, rear drum | |
| ABS+EBD | S | ||
| Parking Sensor | S | ||
| Tyre rim | Steel | ||
KINGLONG Electric City Bus Description:
The smart city light bus series creates a unique and beautiful scenic spot for every progressive city with six major upgrades of appearance, half ride, driving, safety, maintenance and power. The smart city light bus series is a large bus series product launched by Jinlong for the urban main line, intercity direct and BRT markets with large traffic demand, covering the 10-12 meter section.

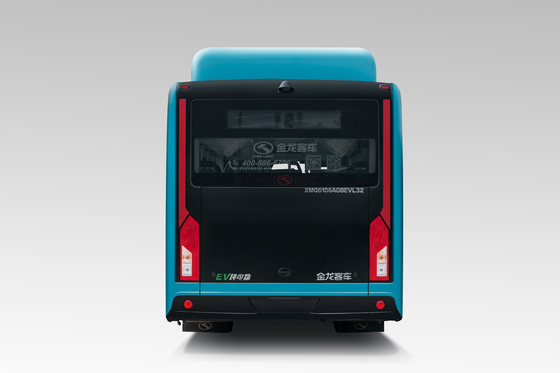

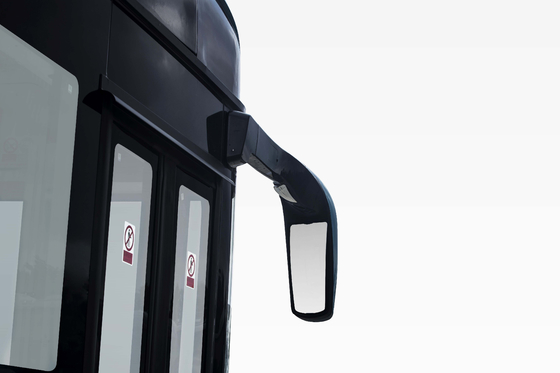

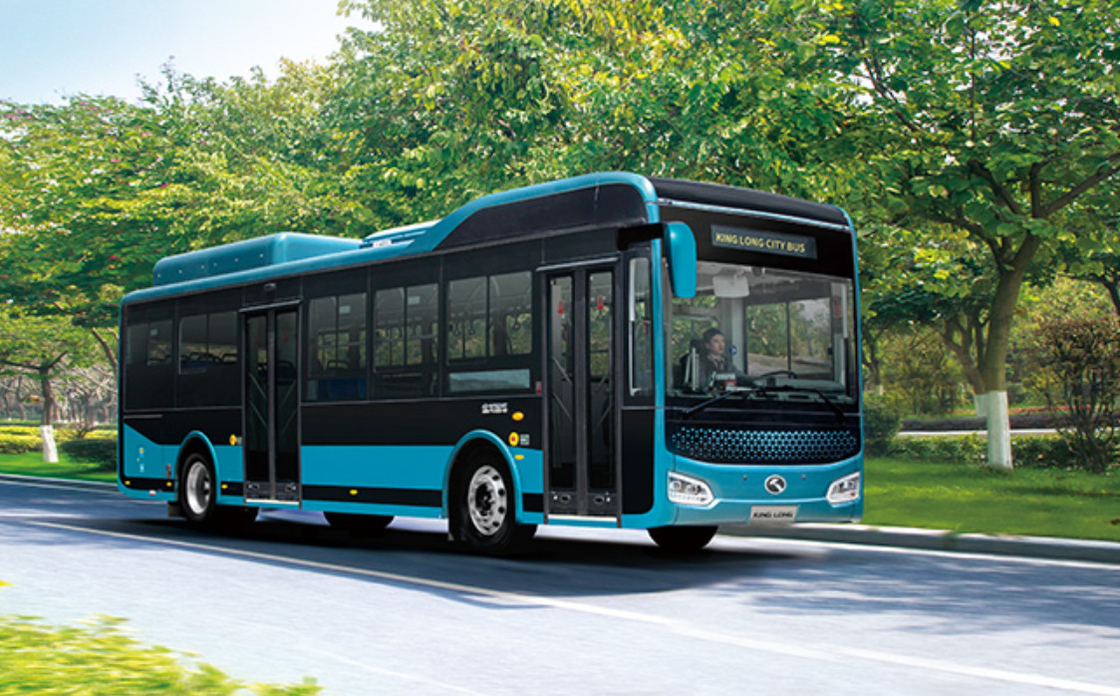

Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
