Product Details:
|
| Overall Size: | 10890*2500*3760 | Cargo Box Dimension: | 8000*2500*3070mm |
|---|---|---|---|
| Driving Form: | 4x2 | Wheel Base: | 4500mm |
| Front Tread: | 1920mm | Rear Tread: | 1860mm |
| Curb Weight: | 6810kg | Rated Loading: | 4990kg |
| G.V.W: | 11995kg | Max Speed: | 90km/h |
| Rear Axle Loading: | 13000kg | Rear Axle Ratio: | 5.571 |
| Fuel Type: | Diesel | Engine Type: | YC6A240-40 |
| Max. Power: | 177kw/240HP | Max Torque: | 900N·m |
| Displacement: | 7.25L | Emission Level: | Eur.V |
| Gear Box: | DFL3120B4 | Cab: | One-half Row, Low Roof |
| Tyres: | 11.00R20 18PR, 6pcs | ||
| High Light: | 4x2 Heavy Duty Dump Truck,Heavy Duty Dump Truck 5 Tons,Light Dump Tippers 8 Tons |
||

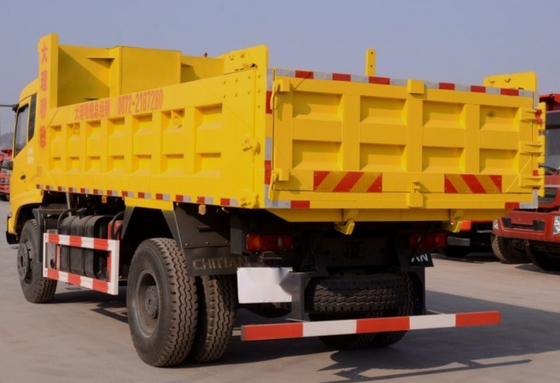

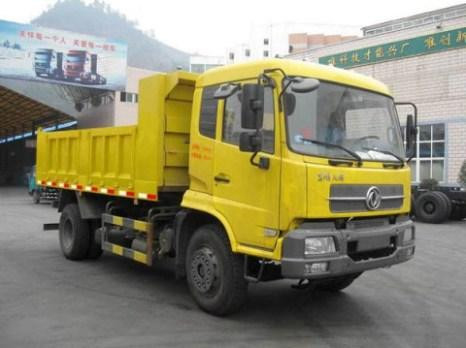

Diesel 4x2 Light Duty Dump Truck ,Light Dump Tippers 5 to 8 tons Loading Capacity
Dump Truck Product Detailed Specification:
| Model | DFL3120B4 |
| Driving Form | 4x2 |
| Overall Size | 8000*2500*3070mm |
| Wheel Base | 4500mm |
| G.V.W | 11995kg |
| Curb weight | 6810kg |
| Cargo Box Dimension | 5400*2300*800mm |
| Cargo Box Type | Rear Dump Type |
| Rated Loading Capacity | 4990kg |
| Max Speed | 90km/h |
| Wheel Track | F/R 1920/1860mm |
| Fuel Type | Diesel |
| Engine Model | YC6A240-40 |
| Power(Kw/HP) | 177kw/240HP |
| Maximum torque(N.m) | 900 |
| Displacement(L) | 7.25L |
| Emission Standard | Euro IV |
| Transmission | DFL3120B4 |
| Rear Axle Loaing | 13000kg |
| Speed Ratio | 5.571 |
| Tires | 11.00R20 18PR, 6pcs |
| Fuel tank | 400L |
Products Features:
to read and reach. The steel structure is reinforced to prevent the cab from being damaged by unexpected debris fall.
To provide the driver and passengers a stronger security, we made sure to meet the European collision standards, the most
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:How about the warranty?
A:One year nomally, exact will depend on final model.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
