Product Details:
|
| Type: | Explosion-proof Diesel Type | Working Form: | 6cylinder Water Cooling 4 Stroke |
|---|---|---|---|
| Fuel Type: | Light Diesel | Cyliner Number: | 4pcs |
| Cylinder Dia.x Stroke(mm): | 68*105mm | Cylinder Liner Type: | Wet |
| Rated. Power/Speed: | 40±2kw/2500rpm | Max. Torque/Speed: | 200N.m/1800rpm |
| Displacement: | 6.168L | Emission Level: | Eur.III (Non-road) |
| Cooling Form: | Water Cooling | Coolant Volume: | 5L |
| Starting Voltage: | 24V | Starting Form: | Electrical |
| Protect Form: | Electric Protection Device | ||
| High Light: | Explosion Proof Engine 40KW,Light Diesel Explosion Proof Engine,petrol diesel engine 40KW |
||

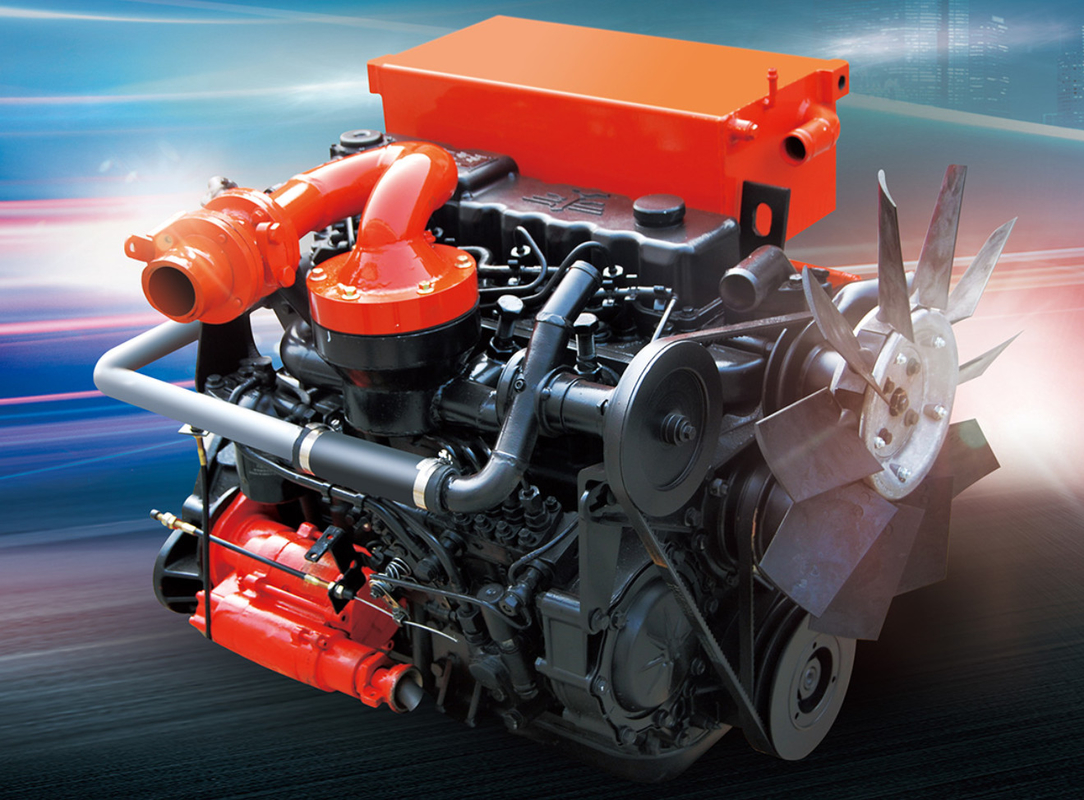

Light Diesel Explosion-Proof Engine 40KW Rated Power Special For Petrol Industry
Diesel Exposion Proof Engine product Detailed Specification:
| Model | KC498DFB | ||
| Cooling System | Fuel System | ||
| Cooling form | Water | Fuel Type | Light Diesel |
| Coolant Volume | 5L | Supply advance angle | 9-11° |
| Cooling Lose Power | 9KW | Injection pressure | 22Mpa |
| Thermostat Starting Temper. | 78 | Min. Fuel Consume | 223g/kw.h |
| Max Allowed Working Temperature | 97 | Flameout Mode | Pull handle |
| Max Cooling circle drag | 35kPa | Min.Inlet Pipe dia. | 8mm |
| Pump Flow Rate | 130L/min | Min.Return Pipe dia. | 8mm |
| Oil Pump Max.Flow rate | 2L/min | ||
| Lubrication System | Allowed Max. Oil Temp. | 70°C | |
| Min. Oil pressure | 150kPa | ||
| Standard Working Oil Pressure | 350-550kpa | Per Formance Data | |
| Oil Grade | CF-4 | Cylinder Number | 4 |
| Oil Volume | 7.5L | Cylinder Diameter | 68mm |
| Max. Working Tem. of Oil Pan | 120°C | Cylinder Stroke | 105mm |
| Oil pan Inclination angle | 30° | Displacement | 6.168L |
| Compress Ratio | 18 | ||
| Starting System | Displacement Temperature | ≤135°C | |
| Starting form | Electric | Engine full speed noise | 115dB |
| Starting Voltage | 24V | ||
| Min Battery Capacity | 60Ah | Tech Datas | |
| Motor Rated Power | 2.5KW | Rated Power/Speed | 40±2kw/2500rpm |
| Max, Current | 198A | Max. Torque/Speed | 200N.m/1800rpm |
| Non preheating Min.starting temp. | 0°C | High. Idling Speed | 2600~2700rpm |
| Pinion Teeth Number | 9/3 | Low. Idling Speed | 800rpm |
| Free Wheel Teeth Number | 103/3 | ||
Products Description:
Kc498 explosion-proof diesel engine, if need, should be repaired as follows: grind (replace) the valve and adjust the valve clearance. Adjust the fuel supply advance angle, adjust the fuel injection pressure, and replace the fuel injection nozzle and plunger if necessary. Check the cylinder pressure and replace the piston ring if necessary. Adjust the clearance of main bearing (connecting rod bearing) and replace the bearing if necessary
