Product Details:
|
| Overall Size: | 5200x1960x2030mm | Driving Form: | 4x2 Double Rear Wheel Drive |
|---|---|---|---|
| Curb Weight: | 4900kg | Rated Loaded Cacpacity: | 5000kg |
| F/R Tread: | 1620/1485mm | Wheel Base: | 3100mm |
| Min.Ground Clearance: | 180mm | Max. Grade Ability: | 25%(14°) |
| Fuel Type: | Diesel | Engine Type: | KC6102/KC4102 |
| Rated Power: | 70kw | Max Torque: | 325N.m |
| Braking Distance: | ≤ 8M | Turning Radius: | ≤3.3m(Inner) |
| High Light: | 4X2 Explosion Proof Truck,Explosion Proof Truck WC5J |
||

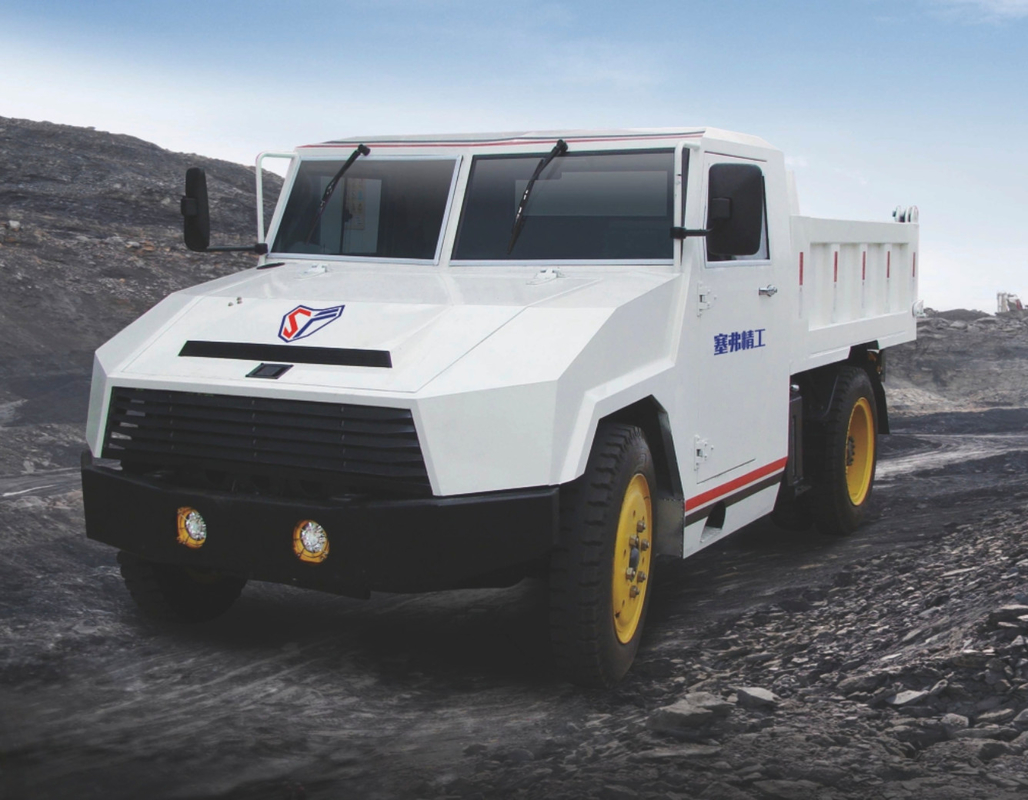

Short Head 4X2 Form Explosion Proof Truck WC5J With Split Structure Body For Mining Station
Product Detailed Specification:
| Model | Short Head WC5J | |
| Overall Size | 5200x1960x2030mm | |
| Engine | Engine Model | KC4102/KC6102 |
| Rated Power(KW) | 70kw | |
| Max Output Torque | 325N.m | |
| Clutch | Diaphragm spring clutch | |
| Transmission | 5gears, Double Cone Synchronizer, | |
| Braking | Driving Braker | Double circuit wet brake system |
| Parking Braker | Central hydraulic spring brake | |
| Emergency Brake | One Key Emergency Brake | |
| Driving Form | 4X2 WD, double Rear Axle Driving Form | |
| Body Structure | split type body,short head | |
| Curb Weight | 4900kg | |
| Rated Loading Capacity | 5000kg | |
| Turning Radius | Inner Edge | ≤3.3m |
| Outer Edge | ≥6.6m | |
| Wheel Base | 3100mm | |
| F/R Wheel Track | 1620/1485mm | |
| Min. Ground Clearance | 210mm | |
| Max. Gradeability | 25%(14°) | |
| Braking Distance | ≤8m(Initial speed less than 20km/h) | |
| Emission Level | COx≤1%, NOx≤0.08% | |
Products Feasures:
Wc5j flat head 4x2
◆ The chassis is mature, stable and reliable.
◆ Ergonomics professional verification, good handling comfort.
◆ Cummins prototype is adopted, with strong power and good emission.
◆ Fully enclosed and reversible cab, convenient for maintenance.
Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
