Euro V Garbage Dump Truck Single Row Cab With 5CBM Container

Certification
China Wuhan ESSENCE Technology Co., Ltd certification
China Wuhan ESSENCE Technology Co., Ltd certification
I'm Online Chat Now

Euro V Garbage Dump Truck Single Row Cab With 5CBM Container

Euro V Garbage Dump Truck Single Row Cab With 5CBM Container
Euro V Garbage Dump Truck Single Row Cab With 5CBM Container Euro V Garbage Dump Truck Single Row Cab With 5CBM Container

Large Image :  Euro V Garbage Dump Truck Single Row Cab With 5CBM Container

Product Details:
Place of Origin: China
Brand Name: DONGFENG
Certification: CCC
Model Number: HLW5071ZLJ6EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1units
Price: USD15000~25000/unit
Packaging Details: naked, with wax; shipped by container, ro-ro ship, train or long vehicle
Delivery Time: depends on order quantity
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000units/month

Euro V Garbage Dump Truck Single Row Cab With 5CBM Container

Description
Overall Size: 5950×2000×2300mm Driving Form: 4*2
Gross Weight: 7360kg Curb Weight: 3990kg
Rated Loading: 3240kg Wheel Base: 2950mm
F/R Tread: 1519/1516mm High Speed: 110km/h
Fuel Type: Diesel Type Engine Type: CA4DB1-11E6
Max. Power: 81kw/110hp Max Torque: 280N.m
Displacement: 2.2L Emission Level: Euro V
Cab: Single Row With 2~3seats Tyres: 7.00R16,7.00R16LT;
High Light:

Euro V Garbage Dump Truck

,

Garbage Dump Truck Single Row

,

trash dump truck 5CBM Container

Heavy Duty Dump Garbage Truck Rear Dump Garbage Tipper with 5CBM Container Garbage Cabin



Garbage Truck Product Detailed Specification:

Vehicle parameters
Vehicle Model HLW5071ZLJ6EQ Vehicle Type Gabage Dump Truck
Overall dimensions(mm) 5950×2000×2300mm Curb weight 3990kg
Total Veight 7360kg Rated Capacity 3240kg
F/R overhang 1055/1587mm Gabage Box Size 4000××1800×800mm
Chassis parameters
Chassis model EQ1075SJ3CDF Chassis brand DFAC
Front Wheel Track 1519mm Wheel base 2950mm
Rear wheel track 1516mm Axle Number 2 axles
Approach/departure angle 27.7°/13° Maximum speed 110km/h
Cab Configuration A row and a half cab,3 passengers allowed, air conditioner.
Color White, or as request
Engine Model CA4DB1-11E6
Emission Euro V
Type Diesel Type, in-line 4cylinders
Rated power 81kw/110hp, rated power speed 3200rpm
Displacement 2.2L
Max.torque 280N.m
Tire Size 7.00R16,7.00R16LT;
Number 6pcs



Garbage Truck HLW5185ZYSD6 Description:

This Dump garbage truck is back unloading; The vehicle is used for garbage collection and transfer; Special devices: car body and self unloading device; Optional car body and rear structure; Side / rear protective material: Q235, connection method: bolt connection, rear protective section size (high × Width (mm): 120 × 60, 450mm above the ground; The cab is optional with the chassis. The front mask, front bumper and front combination lamp are optional with the chassis. A row and a half of cabs are optional; This model can be equipped with etc on-board device and appearance style.



Products HD pictures:

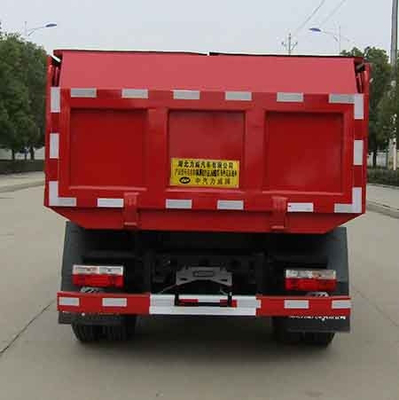

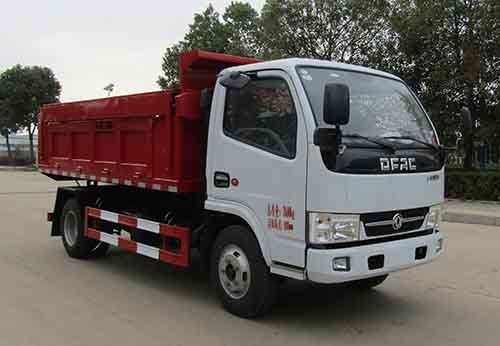

Euro V Garbage Dump Truck Single Row Cab With 5CBM Container 0Euro V Garbage Dump Truck Single Row Cab With 5CBM Container 1





Packing and Shipping:



Euro V Garbage Dump Truck Single Row Cab With 5CBM Container 2



FQA:



Q:How about the delivery time?

A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.

Q:Which country have you exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 3000 units per year.

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model.
