Product Details:
|
| Overall Dimension: | 5100×1910×2300mm | Driving Form: | 4*2 |
|---|---|---|---|
| Gross Weight: | 3495kg | Curb Weight: | 2900kg |
| Rated Loading: | 465kg | Wheel Base: | 2990mm |
| Front Tread: | 1330mm | Rear Tread: | 1210mm |
| Max Speed: | 100km/h | Fuel Type: | Gasoline/Gas |
| Engine Type: | DK15C | Rated. Power: | 82kw/112hp |
| Max Torque: | 145N.m | Displacement: | 1498ml |
| Emission Level: | Euro VI | Gear Box: | 5gears Manual Type |
| Cab: | 2~3seats, Small Type | Tyres: | 165R14LT 8PR,175R14LT 8PR |
| High Light: | 3CBM Road Sweeper Truck,Gasoline Road Sweeper Truck,Harden Surface Cleaning Sweeper Truck |
||
3CBM Gasoline Type Road Sweeper Truck Wash Sweeper for Harden Road Surface Clean Sweep
Road Sweeper Truck Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HLW5030TSL6SC | Vehicle Type | Road Sweeper Truck | |
| Overall dimensions(mm) | 5100×1910×2300mm | Curb weight | 2900kg | |
| Total Veight | 3495kg | Rated Capacity | 465kg | |
| F/R overhang | 725/1385mm | Container/Cabin | -- | |
| Chassis parameters | ||||
| Chassis model | SC1031XDD65 | Chassis brand | Chang An | |
| Front Wheel Track | 1330mm | Wheel base | 2990mm | |
| Rear wheel track | 1210mm | Axle Number | 2 axles | |
| Approach/departure angle | 40°/12° | Maximum speed | 100km/h | |
| Cab | Configuration | A row and a half cab,3 passengers allowed, air conditioner. | ||
| Color | White, or as request | |||
| Engine | Model | DK15C | ||
| Emission | Euro V | |||
| Type | Gasolin Type, 4cylinders in-line | |||
| Rated power | 82kw/112hp, rated power speed 6000rpm | |||
| Displacement | 1498ml | |||
| Max.torque | 145N.m | |||
| Tire | Size | 165R14LT 8PR,175R14LT 8PR | ||
| Number | 6pcs | |||
Road Sweeper HLW5030TSL6SC Description:
HLW5030TSL6SC road sweeper chassis configuration:
1,it adopts a single row Chang'an guoliu new cab, 2700 wheelbase；
2,Rear-view mirror with steering light,；
3,82 kW gasoline engine, 112 HP, 5-speed gearbox, front disc and rear drum brake, with ABS；
4,Original air conditioning, warm air, original electronic direction assistance, and original unique transmission power take-off.
HLW5030TSL6SC is equipped with 4 middle mounted sweeping discs, rear mounted suction cups, internal filter screens, DFSK 39KW auxiliary engine, stepless variable speed automatic clutch, Schneider control switch,wear resistant hydraulic cylinder, Siemens electric control switch, left and right front sweeping and rear suction cup spray dust suppression system, garbage can lifting and self unloading, tail led arrow light, manual pump emergency system.

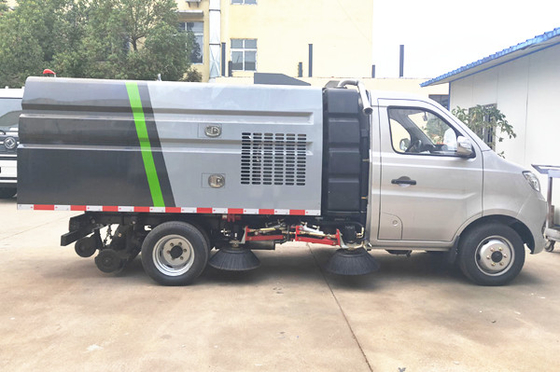

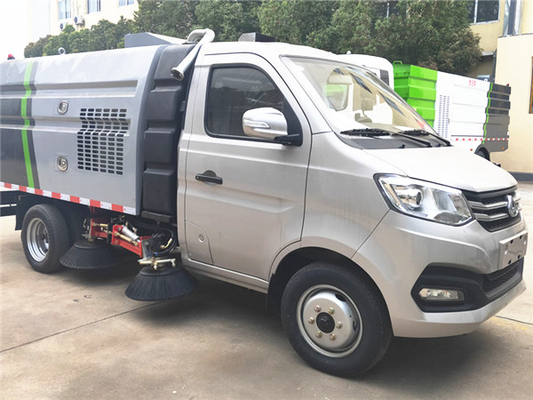

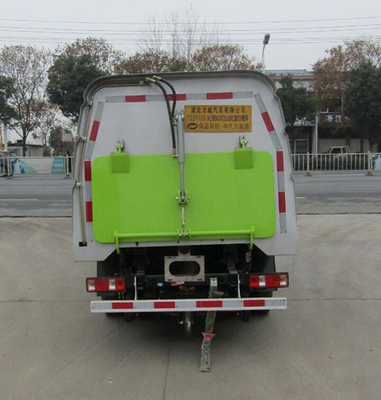

Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q:How about the warranty?
A: IT will be according to exact different models.pls contact us for details information.
Q:How about the delivery time?
A: All our producsts are made to orders, 20~35days will be needed.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
