Product Details:
|
| Overall Dimension: | 6210×2100×2600mm | Driving Form: | 4X2 Driving |
|---|---|---|---|
| Total Weight: | 7360kg | Curb Weight: | 5080kg |
| Rated Loading: | 2150kg | Wheel Base: | 2700mm |
| Front Tread: | 1525mm | Rear Tread: | 1498mm |
| Maximum Speed: | 110km/h | Fuel Type: | Diesel Type |
| Engine MODEL: | D20TCIF1 | Rated. Power: | 93kw,127hp |
| Max Torque: | 350N.m | Displacement: | 2L |
| Emission Level: | Euro VI | Gear Box: | 5 Forwarder Gears |
| Cab: | D6 Series | Tyres: | 7.00R16,7.00R16LT, Steel Tyre |
| High Light: | Road Sweeper Truck 130HP,DONGFENG D6 Road Sweeper Truck,road sweeper lorry 4X2 |
||

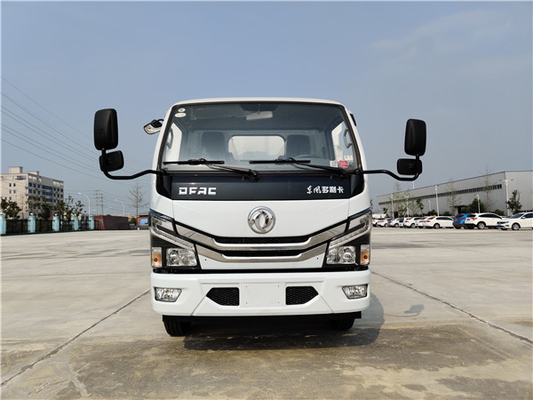

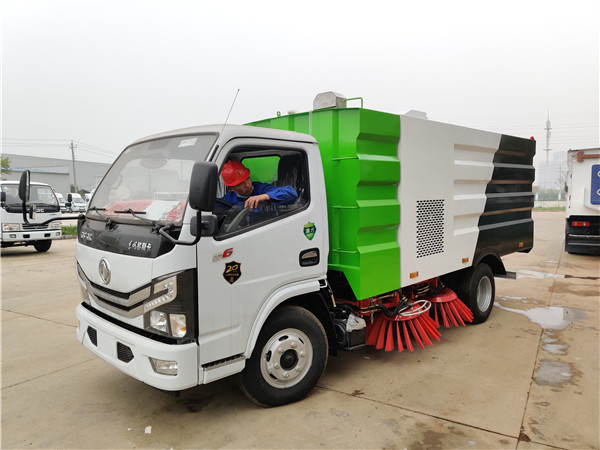

DONGFENG D6 Series Cab 130HP 4X2 Road Sweeper Truck Diesel Fuel Engine
Road Sweeper Truck Detailed Specification:
| Vehicle parameters | ||||
| Vehicle Model | HLW5071TSL6EQ | Vehicle Type | Road Sweeper Truck | |
| Overall dimensions(mm) | 6210×2100×2600mm | Curb weight | 5080kg | |
| Total Veight | 7360kg | Rated Capacity | 2150kg | |
| F/R overhang | 1055/1847mm | Container/Cabin | -- | |
| Chassis parameters | ||||
| Chassis model | EQ1075SJ3CDF | Chassis brand | DFAC | |
| Front Wheel Track | 1525mm | Wheel base | 2700mm | |
| Rear wheel track | 1498mm | Axle Number | 2 axles | |
| Approach/departure angle | 27°/15° | Maximum speed | 110km/h | |
| Cab | Configuration | D6 New Model Cabin,2seats allwed, widder space | ||
| Color | Standard or as request | |||
| Engine | Model | D20TCIF1 | ||
| Emission | Euro V | |||
| Type | 4cylinders in-line with Diesel Fuel , Turbo Charger | |||
| Rated power | 127hp/93kw, rated power speed 3200rpm | |||
| Displacement | 2000ml | |||
| Max.torque | 350N.m | |||
| Tire | Size | 7.00R16,7.00R16LT | ||
| Tyre No. | 6 | |||
Road Sweeper HLW5071TSL6EQ Description:
HLW5071TSL6EQ road sweeper Chassis configuration:
1,Adopts the new driver's cab of Dongfeng D6 series, 3308mm wheelbase；
2,Equipped with Euro V Dongfeng Chaoyang 130 HP / Guangxi Yuchai 140 HP diesel engine, WanLiYang 5-speed gearbox,5T rear axle,
7.00R16 steel tire
3,ABS, standard electric window, central lock, remote key, daytime running light, automatic locking, air brake, constant speed cruise, instantaneous fuel consumption, full of sense of science and technology, More comfortable driving.

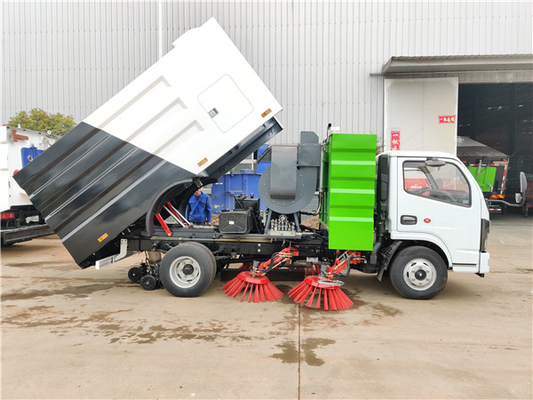

Top configuration: 4 sweeping discs in the middle, rear suction cups, internal filter screens, Jiangling 64kw/87 HP auxiliary engine, stepless speed change automatic clutch, Schneider control switch, wear-resistant hydraulic cylinder, Siemens electric control switch, left and right front sweeping and rear suction cup spray dust suppression system, garbage bin lifting and self unloading, tail led arrow light, manual pump emergency system.
Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q:Which country have you exported to already?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan etc.
Q:How about the warranty?
A: IT will be according to exact different models.pls contact us for details information.
Q:How about the delivery time?
A: All our producsts are made to orders, 20~35days will be needed.
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
