120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin

Certification
China Wuhan ESSENCE Technology Co., Ltd certification
China Wuhan ESSENCE Technology Co., Ltd certification
I'm Online Chat Now

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin
120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin

Large Image :  120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin

Product Details:
Place of Origin: CHINA
Brand Name: KaiYun
Certification: L7E, EEC, LSV
Model Number: Kai Passenger,4KW
Payment & Shipping Terms:
Minimum Order Quantity: 3units
Price: USD3500~7000
Packaging Details: naked and protected with films
Delivery Time: 20days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 150000units/year

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin

Description
Overall Size: 3655×1340×1560mm Wheel Base: 2495mm
Cabin Type: Double Row, 4seats Curb Weight: 775kg
Payload: 150kg Max. Speed: 40-45km/h
Driving Mileage: 120KM Min. Ground Clearance: >150mm
Motor Type: AC Motor Rated Power: 4KW
Battery Type: Lead Acid AGM Battery Voltage: 72V / 100Ah
Charging Time: 8-10h Max. Grade: 20%
Approach Angle: >55 Departure Angle: >35
High Light:

120KM Electric Light Trucks

,

Electric Light Trucks 2 Rows Cabin

4seats 2rows cabin Electric Pickup Truck/ Light Electric Truck with 120KM driving range



Product Detailed Specification:

Model PASSENGER,4kW
BASIC SPECS
VEHICLE DIMENSIONS
Height (mm) 1,560
Width (mm) 1,340
Length (mm) 3,655
Wheelbase (mm) 2,495

BED DIMENSIONS
Height (mm) 900
Width (mm) 1,315
Length (mm) 400

Vehicle Gross Weight (kg) 775
Payload (kg/lb) 150
Towing Capacity (kg/lb) 1,000 / 2204.62
Passengers 4

PERFORMANCE
Top Speed (km/h) 40 (~45)
Maximum Grade (%) 20
Minimum Turning Radius (m ) ≤9
Minimum Ground Clearance (mm) ≥150
Approach Angle ≥55
Departure Angle ≥35

BATTERY & MOTOR
Battery Specs 72V / 100Ah
Battery Type Lead Acid AGM
Charging Time 8~10h
Maximum Driving Range (km/m) 120 / 74.57
Motor Type AC
Rated Power 4kW
Motor Controller CAN

BODY STRUCTURE
Cabin Body Stamped Sheet Metal
Double Row
CHASSIS & WHEELS
Drive Type Rear Wheel Drive
Front Suspension Double Wishbone Independent Suspension
Rear Suspension Leaf Plate Suspension (5 pieces)
Drive Axle Integrated (Speed ratio12.76)
Brake (front/rear) Discs / Drums
Wheel Hub 13x4.5B (Alloy 4X114.3)
Tire Specification 13x4.5B (Alloy 4X114.3)
Steering Type Rack & Pinion
Steering Assist
Brake Assist



Products Features:

- At the beginning of the development of pickman, we returned to the fundamental demand of people for transportation tools

- to load more things and go farther. To achieve this goal, we redefined pickman's product design ideas.

- Revolutionary materials, from "zero" to "whole".

- Gold ratio, love at first sight
- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the overall posture is

stable and dynamic.



Products HD pictures:

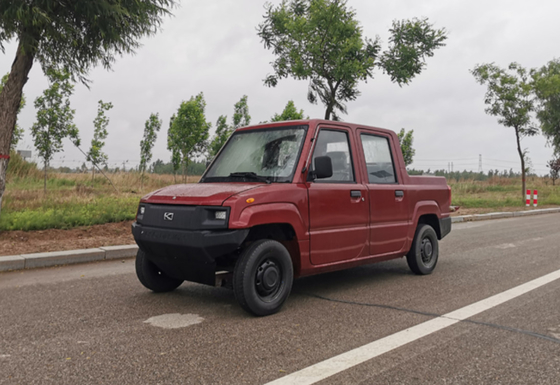

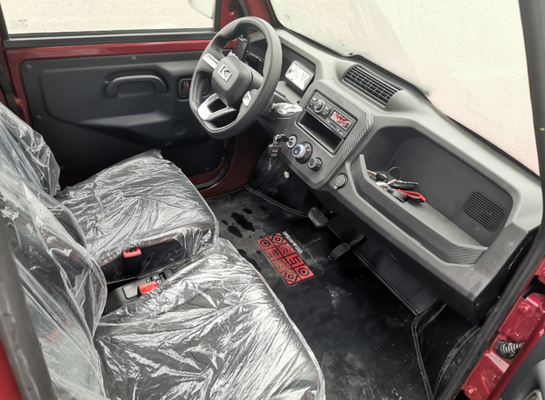

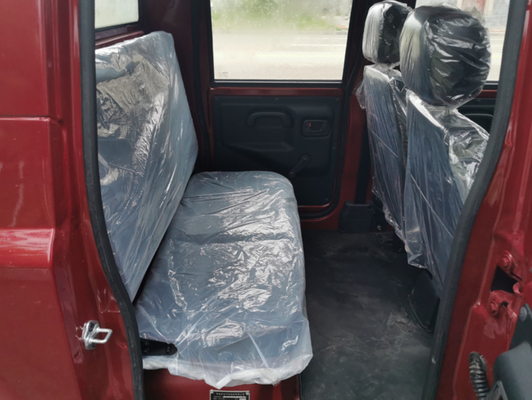

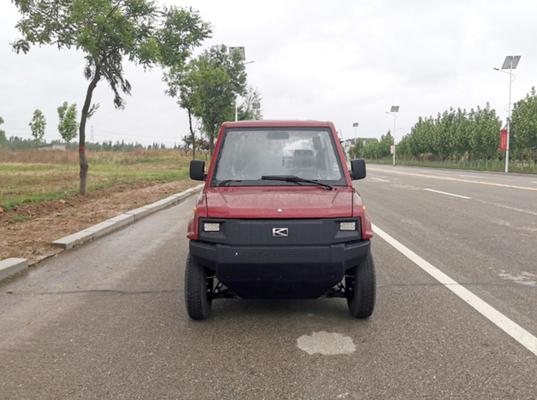

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 0

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 1

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 2120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 3

Reference Vedio:

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 4



Customers View:

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 5



Company Profile:

Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.



From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.



We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.



Packing and Shipping:

120KM Driving Range Electric Light Trucks With 4 Seats 2 Rows Cabin 6



FAQ:



Q: How many trucks does your factory produce per years?

A: Almost 15000 units

Q:How about the warranty?

A:One year for motor and battery.

Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.

Q. Is it OK to print my logo on ?
A: Yes. Please tell to us about quantity.
