Product Details:
|
| Overall Size: | 3600×1520×1820mm | Inner Container Size: | 1620X1245X300mm |
|---|---|---|---|
| Wheel Base: | 2315mm | Cabin Type: | Closed, 2rows |
| Curb Weight: | 800kg | Payload: | 300kg |
| Max. Speed: | 80-85km/h | Driving Range: | 150KM(Unload) |
| Min. Ground Clearance: | >200mm | Motor Type: | AC Asynchronous Motor |
| Rated Power: | 10.5KW | Battery Type: | Lithium Iron Phosphate Battery |
| Battery Voltage: | 76.8V/206Ah | Charging Time: | 5-8h |
| Max. Grade Ability: | 35% | Approach Angle: | >55 |
| Departure Angle: | >35 | ||
| High Light: | FWD New Electric Truck,New Electric Truck Enclosed Cabin |
||
FWD Electric Pickup Truck/ EV Electric Truck, Enclosed Cabin big power motor for Patroling
Product Detailed Specification:
| Model | XR (4X4) KK1121D10 |
| Basic Parameters | |
| L*W*H(mm) | 3600×1520×1820 |
| Inner dimension of container | 1620X1245X300 |
| Wheelbase (mm) | 2315 |
| Front track width (mm) | 1315 |
| Rear track width (mm) | 1315 |
| Front suspension (mm) | 455 |
| Rear suspension (mm) | 705 |
| Curb weight (kg) | 800 |
| Cargo weight (kg) | 300 |
| Seats | 2 |
| Total mass(kg) | 1230 |
| Performance parameter | |
| Max speed(km/h) | 80(Instrument display 85) |
| Acceleration time s (0-40km) | 20 |
| Maximum climbing gradient | 35% |
| Minimum turning diameter (m) | ≤9 |
| Maximum angle | 36.3(Outer wheel)/42(Inner wheel) |
| Approach angle (°) | ≥55 |
| Departure angle (°) | ≥35 |
| Minimum ground clearance (mm, no load) | ≥200 |
| Body structure | |
| Cab upper body | Sheet Metal |
| Steel pipe door | ○ |
| Cargo box | Cargo box is opend from rear |
| Battery / motor parameters | |
| Power Battery Specification (V / ah) | 76.8V , 206Ah |
| Driving range (no load) (km) | 150 |
| Battery type | Lithium iron phosphate battery |
| Charger | 110 ~ 220V vehicle mounted charger (wide voltage) |
| Charging time (h) | 5~8 |
| Power consumption per 100 km (KWH) | 6.5 |
| Motor type | AC asynchronous motor |
| Motor controller | Dual motor controller |
| Rated power (kw) | 10.5KW(front 3kw,rear 7.5kw) |
| Chassis / wheel brake | |
| Driving form | Rear drive / 4WD |
| Front suspension | Double wishbone spiral spring independent suspension |
| Rear suspension | Longitudinal leaf spring(3 piece) |
| Drive axle | Front axle 6.77/1 Rear axle (7.99/1) |
| Front brake | Disc |
| Rear brake | Drum |
| Wheel | 15 inch steel rim |
| Aluminum rim | ○ |
| Tire size | 195/65 R15(Ordinary pattern) |
| Off -road tire size | ○ 195/65 R15(Off road tread pattern) |
| Steering structure | Rack and pinion |
| Power steering | ● |
| Brake assist | ● |
Products Features:
- At the beginning of the development of pickman, we returned to the fundamental demand of people for transportation tools
- to load more things and go farther. To achieve this goal, we redefined pickman's product design ideas.
- Revolutionary materials, from "zero" to "whole".
- Gold ratio, love at first sight
- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the overall posture is
stable and dynamic.

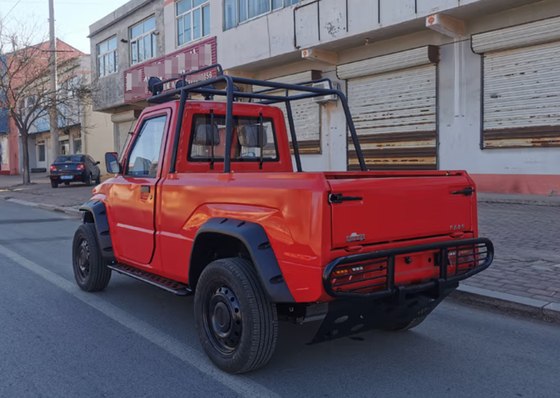

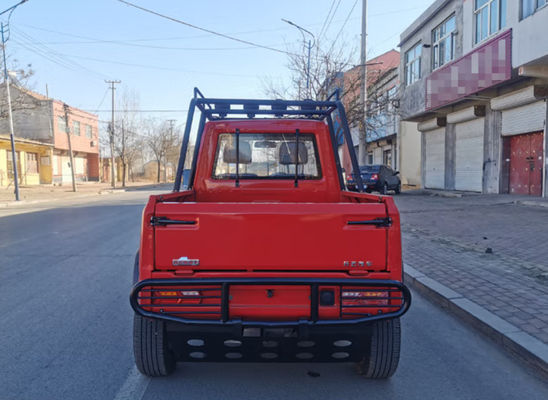

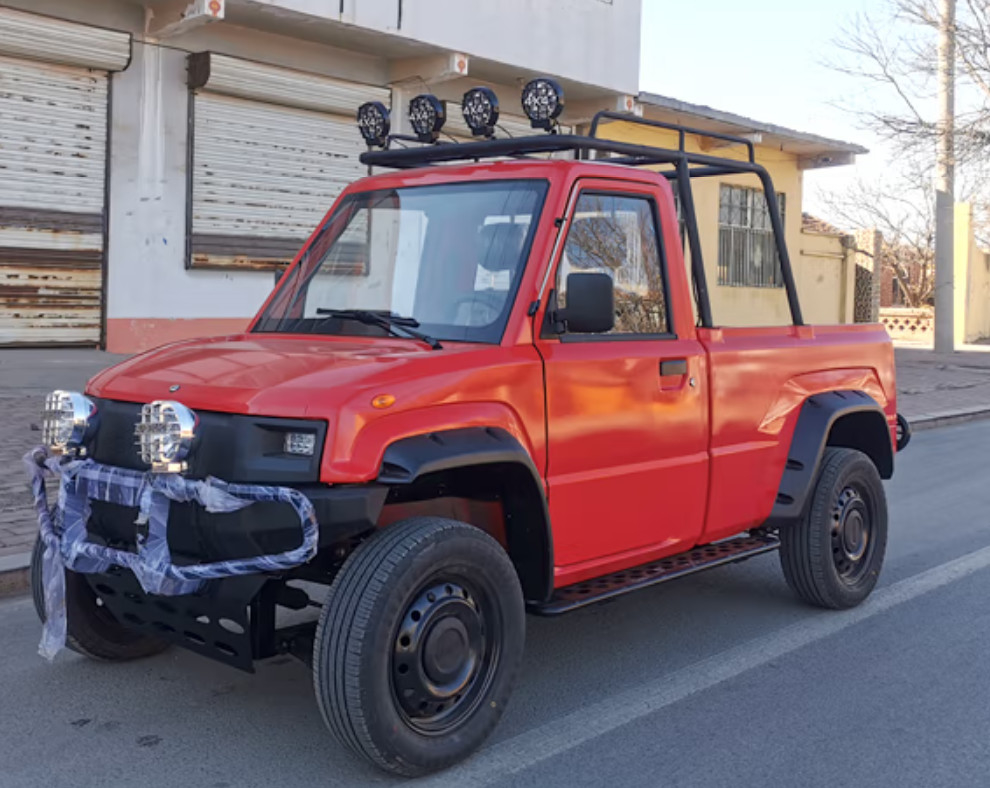

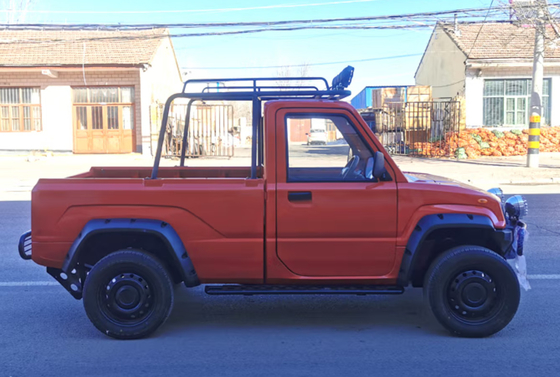

Products HD pictures:
Details Pictures:
Reference Vedio:
Customers View:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q: How many trucks does your factory produce per years?
A: Almost 15000 units
Q:How about the warranty?
A:One year for motor and battery.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Q. Is it OK to print my logo on ?
A: Yes. Please tell to us about quantity.
