Product Details:
|
| Overall Dimension: | 4430*1626*1965mm | Wheel Base: | 2800mm |
|---|---|---|---|
| Min. Clearance: | 145mm | Motor Type: | Pamernent Magnet Synchronous Motor |
| Battery Type: | Lithium Iron Phosphate Battery | Power Battery Capacity(kW·h): | 39.9 (kwh) |
| Max Output Power: | 60kw | Max. Output Torque: | 225N·m |
| Driving Range(NEDC): | 251km | Doors: | 4 |
| Seats: | 2/5 | Cargo Box Volume: | 4.7M3 |
| Fast Charging: | 0.5h | Slow Charging: | 6-8h |
| Tyre Size: | 185/65 R15LT | ||
| High Light: | None Emission Electric Vehicle Vans,Electric Vehicle Vans 3 Seats,100km/H Electric Mini Buses |
||

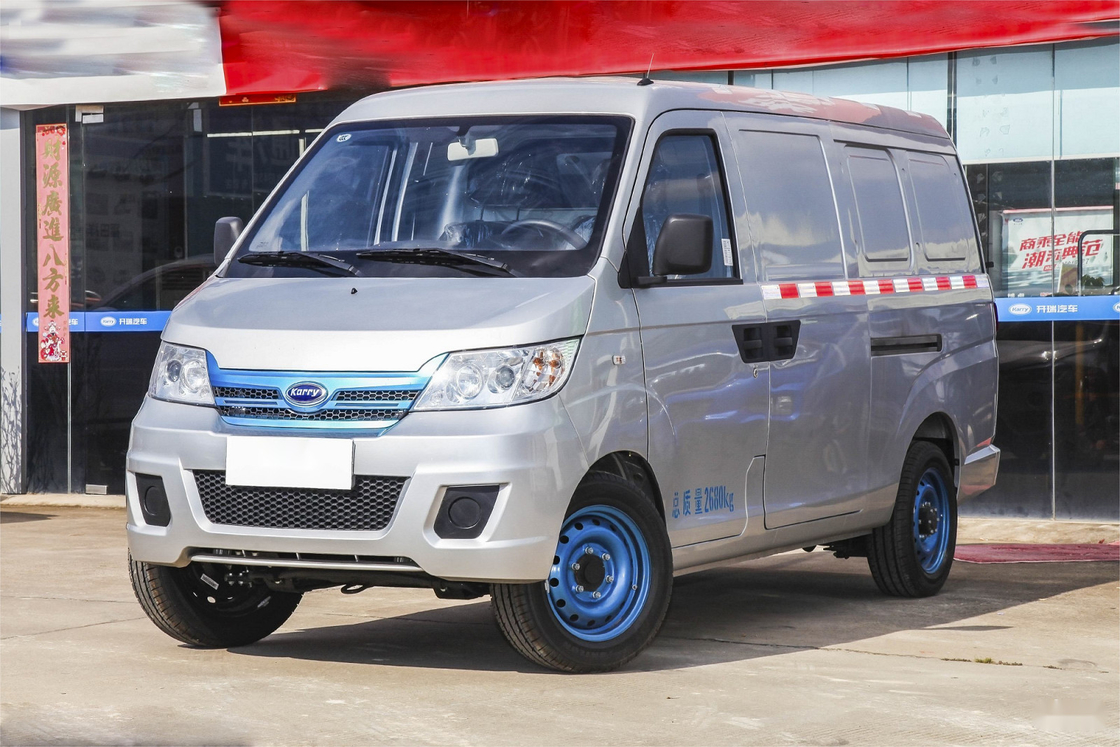

None Emission Pure Electric Vans/mini buses 3 seats 100km/h High Speed and Long Endurance Mileage
Electric Vans EV 235 Detailed Specification:
| MODEL | EV-235 | ||
| Dimension | Overall dimension(L*W*H) | 430*1626*1965mm4 | |
| Wheel base(mm) | 2800 | ||
| Cargo Box Volume | -- | ||
| 4.7m³ | |||
| Curb weight(kg) | 1440 | ||
| Rated Loading weight(kg) | 990kg | ||
| Max vehicle speed (km/h) | 90 | ||
| Chassis | Front Suspension type | McPherson independent suspension/ | |
| Rear Suspension type | Taper Leaf Spring | ||
| Driving Form | Rear drive | ||
| Steering | Power Assistance Steering | ||
| Motor | Motor type | Permanent magnetic synchronizer | |
| Max Power(kw) | 60 | ||
| Max torque(Nm) | 225 | ||
| battery | Battery type | Lithium iron phosphate type | |
| Rated Capacity(KWH) | 39.9 | ||
| Driving Mileage (NDEC) | 251KM | ||
| Charging | Slow/Fast Charing | Y | |
| Tyre and Brake | Brake | Front disc, rear drum | |
| ABS+EBD | Y | ||
| Reverse Radar | Optional | ||
| Tyre type | 185/65 R15LT | ||
| Other Confirguration | Seats | 2seats, Fabric material | |
| Flooring | PVC floor covering for Dring room Aluminum plate floor covering for cargo box |
||
| Air Condition | Manual Type Front A/C | ||
| Widows | Electric type for Driving room | ||
Products Features:
Products HD pictures:
Factory View:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
Q: Can you offer customized service?
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
