Product Details:
|
| Overall Size: | 5800x1960x2030mm | Driving Form: | 6*4, Double Rear Drive |
|---|---|---|---|
| Curb Weight: | 8000kg | Rated Loaded: | 10000kg |
| Wheel Base: | 2700+1350mm | F/R Tread: | 1620/1570mm |
| Min.Ground Clearance: | 190mm | Max. Grade Ability: | 25%(14°) |
| Fuel Type: | Diesel | Engine Type: | KC4107/K6102 |
| Rated Power: | 105kw | Max Torque: | 530N.m |
| Emission Level: | Eur.III(Non.Road) | Braking Distance: | ≤ 8M |
| Explosion Proof Motor: | 24V, 350/500W | ||
| High Light: | Short Head Explosion Proof Truck,Explosion Proof Truck 6x4 |
||

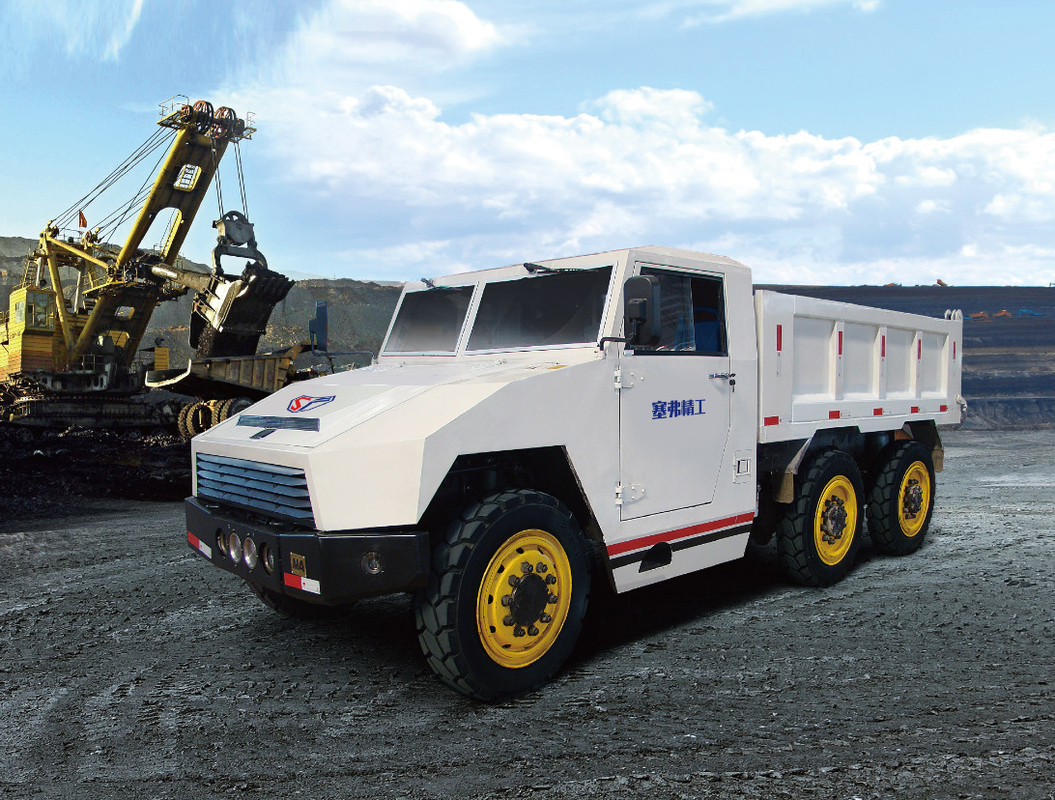

Coal Mining Internal Useage 6x4 Driving Form Short Head Explosion Proof Truck
Product Detailed Specification:
| Model | WC10J Short Head | |
| Overall Size | 5800x1960x2030 | |
| Engine | Engine Model | KC4107/KC6102 |
| Rated Power(KW) | 105kw | |
| Max Output Torque | 530N.m | |
| Clutch | Diaphragm spring | |
| Transmission | Double Cone Synchronizer | |
| Braking | Driving Braker | Double circuit wet brake |
| Parking Braker | Central hydraulic spring brake | |
| Emergency Brake | One Key Emergency Brake | |
| Driving Form | 6x4 Rear Driving | |
| Body Structure | Short head split body | |
| Curb Weight | 8000kg | |
| Rated Loading Capacity | 10000kg | |
| Turning Radius | Inner Edge | ≤4.8m |
| Outer Edge | ≥7.3m | |
| Wheel Base | 2700+1350mm | |
| F/R Wheel Track | 1620/1570mm | |
| Min. Ground Clearance | 190mm | |
| Max. Gradeability | 25%(14°) | |
| Braking Distance | ≤8m(Initial speed less than 20km/h) | |
| Emission Level | COx≤1%, NOx≤0.08% | |
Products Feasures:
◆ Short head structure design ensures the safety of drivers.
◆ Cummins prototype is adopted, with strong power and good emission.
◆ Direct control structure gearbox makes gear shifting more convenient and smooth.
◆ The height of the whole vehicle is lower, which is more suitable for the working needs of the working face.
◆ Professionally optimized steering trapezoidal structure, with smaller turning radius.
◆ Professional CAE analysis of body and frame, small vehicle servicing quality and high transportation efficiency.
◆ 6x4 balanced suspension structure is adopted, with good adhesion and strong passing ability.
Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
