Product Details:
|
| Model Nunber: | EVP7 | Type: | AC Charger, Slow Charger |
|---|---|---|---|
| Input Current: | 32A | Maxium Output Power: | 7KW |
| Input Voltage: | 230Vac | Charging Mode: | Mode 3 |
| Operating Temperature: | -25~50C | Operating Humidity: | 5~95% |
| Max Effeciency: | 94% | Dimension: | 250*139*445mm |
| Degree Protection: | IP54 | Installation: | Wall Mounted |
| High Light: | AC EV Charger 7KW,11kw Wall Mounted EV Charger |
||

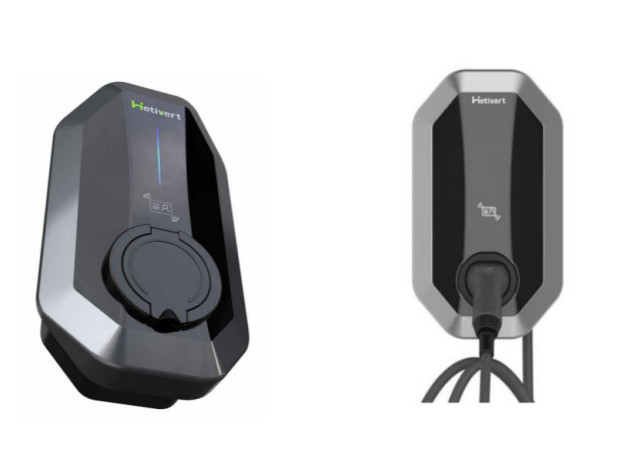

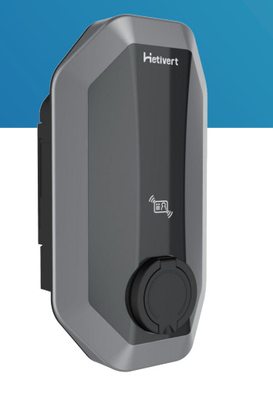

AC EV charger 7KW Mode 3 Charging Mode Electric Car 11kw Power Wall Mounted Ev charger
Products HD pictures:
Product Feasures:
Product Parameters:
| Techanical Ratings | ||||
| AC Input | ||||
| Connection type | U/V/W+N+PE | |||
| Input voltage | 230Vac | |||
| Input frequency | 50Hz±10% | |||
| Rated power | 7kW | |||
| Max input current | 32A | |||
| Power factor | ≥0.98, Maximum value | |||
| Max. efficiency | >94% | |||
| Charging Interface | ||||
| Vairant-A | Type 2 cable, 4M | |||
| Vairant-B | Type 2 socket without shutter | |||
| Charging Mode | Mode 3 | |||
| HMI | ||||
| Access Control | RFID, APP, CARD | |||
| LED | Operating status | |||
| Wireless network | WIFI 2.4GHz with OCPP 1.6J | |||
| Wired network | RJ45, RS485 | |||
| Protocol for backend3 | -- | |||
| Ambient Conditions | ||||
| Operating temp, range | -10°C~+50°C | |||
| Operating humidity | 5-95% | |||
| Operating altitude | ≤2000m | |||
| Mechanical Data | ||||
| Dimension (W*D*H) | 250*139*445mm | |||
| Degree of protection | IP54 | |||
| Charging cable length | optional | |||
| Noise level | ≤75dB | |||
| Installation | Wall Mounted | |||
| Standard and Compliance | ||||
| Charging System | IEC 61851-1, IEC 62196-2 | |||
| IEC 61851-21-2, IEC 61800-2, IEC 61800-4 | ||||
| EMC | IEC61000-6-1 IEC61000-6-3 | |||
| Certification mark | TUV CE | |||
