Product Details:
|
Overall Size: | 5995*2000*2990 | Wheel Base: | 3360mm |
---|---|---|---|
Seats: | 2/3 | Curb Weight: | 2920kg |
Highest Speed: | 90km/h | Endurance Mileage: | 230KM |
Rated Loading: | 1415kg | Motor Output Power: | 85kw |
Motor: | PMSM | Battery Type: | Lithium Iron Phosphate Battery |
Battery Capacity: | 88.06 | Cargo Box Volume: | 15-20cbm |
High Light: | 6000kg Electric Van Truck,DONGFENG Electric Van Truck,electric cube van 350km |
DONGFENG 6000kg GVW Electric Van Truck with Long endurance mileage 350km
Electric Truck Detailed Specification:
Model | EV18(Hydraulic brake) | ||
Cab | Width(mm) | 1900 | |
Qty of seats | 3 (Standard)/2 (optional) | ||
Basic configuration parameters | overall dimension (mm) | 5995×2180×2300 | |
Inside dimensions of the cargo box(mm) | unequipped | ||
Cargo box volume(m³) | 16.7 | ||
Cargo box material | Iron | ||
Wheel base(mm) | 3308 | ||
GVW(Kg) | 4250 | ||
net weight | 2200 without cargo body | ||
Type of brake | Hydraulic | ||
Brake system | Drum | ||
Drive mode | Single reduction | ||
Front axle/Rear axle(T) | 2.2/3.5 | ||
Tyre | 7.00R16 8PR | ||
Battery, Motor, Controlling system | PACK battery brank/type | CATL/LFP | |
Total power (Kwh) | 81.14 | ||
Brand/type of motor | INOVANCE SUZHOU | ||
Motor power(KW) | 60/120 | ||
Motor torque(N.m) | 150/320 | ||
Gearbox ratio | 3.148 | ||
Rear axle main reduction ratio | 5.375 | ||
MCU controller brand | INOVANCE SUZHOU | ||
Charging mode | As request | ||
Performance indicators | Constant speed range(km) | ≥350 | |
Maximum gradeability | ≥25% | ||
Highest speed(KM/h) | ≥90 | ||
Battery density(Wh/kg) | ≥147 | ||
EKG(Wh/km·Kg) | ≤0.29 |
Products Details:

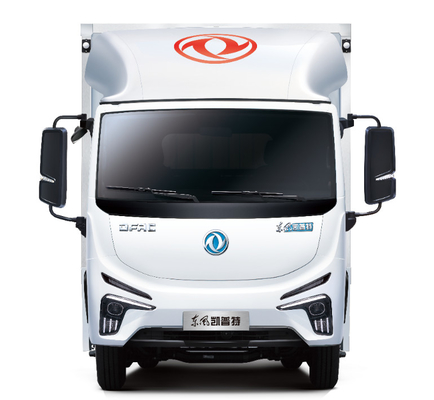

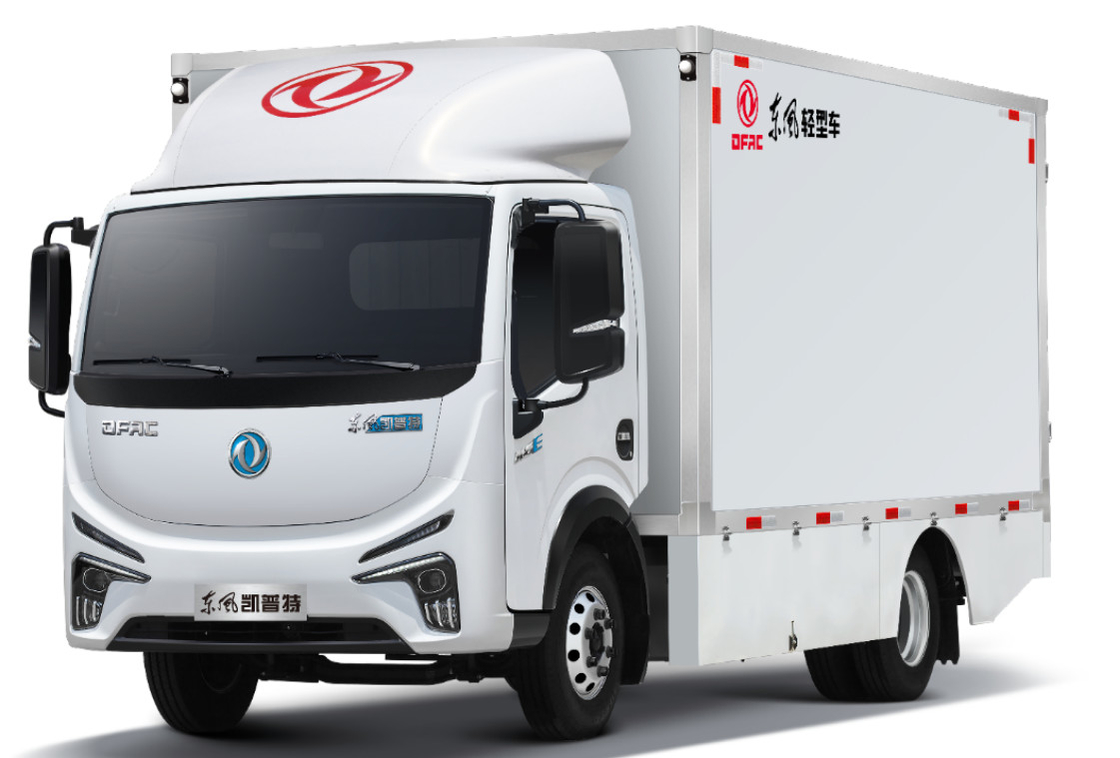

Electric Truck HD Picture:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q:How about the warranty?
A:According to different product, we usually provide 12months warranty.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
