Product Details:
|
Overall Size: | 5750*1940*2600mm | Cargo Box Dimension: | 3700*1860*1750mm |
---|---|---|---|
Wheel Base: | 3000mm | Seats: | 2/3 |
Cargo Box Volum: | 12cbm | Curb Weight: | 1850kg |
Highest Speed: | 90km/h | Endurance Mileage: | 350KM |
Rated Loading: | 1500kg~2500kg | Motor Output Power: | 66.8kw |
Motor: | Permanent Magnet Synchronous | Battery Type: | Lithium Iron Phosphate Battery |
Battery Capacity: | 154.59(kwh) | Fast Charging: | 1-3h |
Slow Charging: | 6-8h | ||
High Light: | DFAC EV Electric Truck,4x2 EV Electric Truck,3 Seats Electric Small Pickup Truck |
DFAC 4x2 Single Row 3 seats Cab electric truck/Pure Electric Small Pickup truck
Electric Truck Detailed Specification:
Model | EV200 | ||
Cab | Type | 1650/single row | |
Qty of seats | 2 (Standard | ||
Basic configuration parameters | overall dimension (mm) | 5750*1940*2600mm | |
Inside dimensions of the cargo box(mm) | 3700*1860*1750mm | ||
Cargo box volume(m³) | 12.04 | ||
Cargo box material | Iron | ||
Wheel base(mm) | 3000 | ||
GVW(Kg) | 4500 | ||
Chassis Curb Weight(kg) | 1850 | ||
Type of brake | Hydraulic | ||
Brake system | Drum | ||
Drive mode | Single reduction | ||
Front axle/Rear axle(T) | 1.5/3.0 | ||
Tyre | 185R15LT 8PR | ||
Battery, Motor, Controlling system | PACK battery brank/type | CATL/LFP | |
Battery Capacity(kwh) | 66.8 | ||
Brand/type of motor | INOVANCE SUZHOU | ||
Motor power(KW) | 42/100 | ||
Motor torque(N.m) | 90/230 | ||
Gearbox ratio | 3.148 | ||
Rear axle main reduction ratio | 4.875 | ||
MCU controller brand | INOVANCE SUZHOU | ||
Charging mode | As request | ||
Performance indicators | Constant speed range(km) | ≥300 | |
Maximum gradeability | ≥25% | ||
Highest speed(KM/h) | ≥90 | ||
Battery density(Wh/kg) | 154.59 |
Products Feasures:
- Electric window central lock, boarding armrest
- Chrome plated decoration, all inclusive interior decoration
- Optional mirror heating and mirror folding
- Hidden design of glass water and cooling water filler
- Standard front and rear shock absorbers
- Large swing door opening
- Multi function steering wheel + steering wheel angle adjustment
- Seat angle adjustment Cool and warm water cup holder enriches storage space;

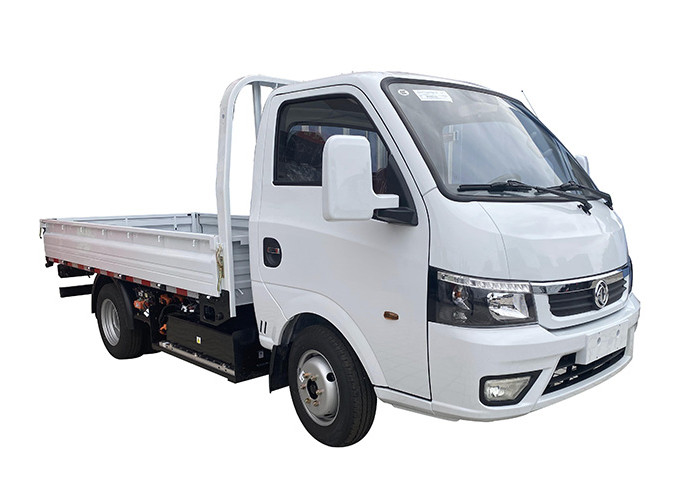

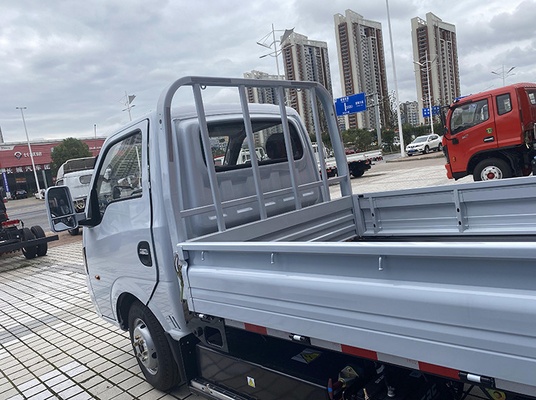

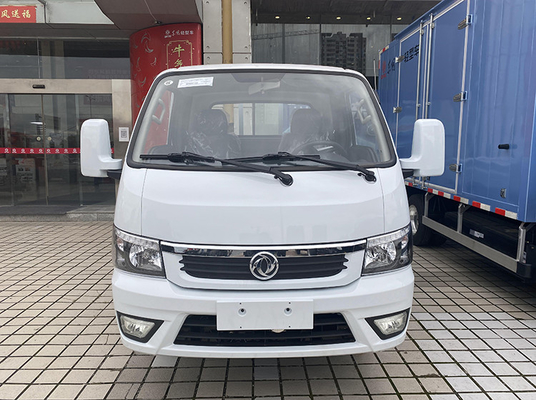

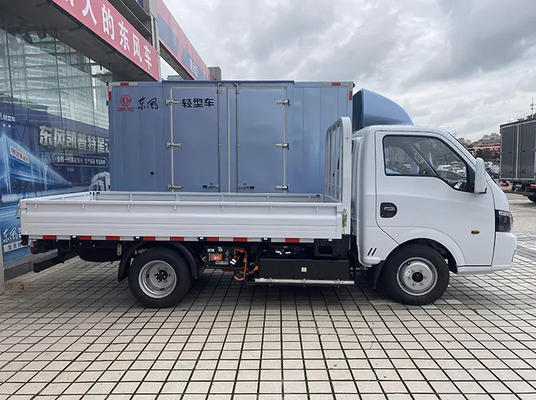

Electric Truck HD Picture:
Products Details:
Company Tour:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FAQ:
Q:How about the warranty?
A:According to different product, we usually provide 12months warranty.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Can you offer customized service?
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
