Product Details:
|
| Type: | Explosion-proof Diesel Type | Working Form: | 4 Stroke, 4cylinder Inline Water Cooling |
|---|---|---|---|
| Fuel Type: | Light Diesel | Cyliner Dimension: | 4x91x100mm |
| Net Weight(kg): | 320kg | Cylinder Liner Type: | Wet |
| Total Piston Displacement: | 2.8L | Rated. Power: | 50KW |
| Max. Torque(N.m)/speed(r/min): | 250N.m/1600rpm | Min. Working Speed(r/min)/Torque(N.m): | 1300/184 |
| Cooling Form: | Closed Forced Circulation Water Cooling | Emission Level: | Eur.III (Non-road) |
| Max. No-live Load Speed(r/min): | 2390 | Protect Form: | Electric Protection Device |
| High Light: | High Pressure Explosion Proof Engine,Explosion Proof Engine Common Rail,Explosion Proof four cylinder diesel engine |
||
High Pressure Common Rail Diesel Explosion-proof engine In-line Four Cylinder Type
Diesel Exposion Proof Engine product Detailed Specification:
| Model | KC493DZL(D,Q)FB | |
| Type | Inline-Four, water-cooling,four stroke | |
| Firing Order | 1-3-4-2 | |
| Cyliner N.x bore (mm) xStroke(mm) | 4x91x100 | |
| Total Piston Displacement | 2.8 | |
| Cylinder Liner Type | Wet | |
| Oil Working Pressure(kPa) | 70-400 | |
| Starting Form | Electric/ Pneumatic | |
| Protect Form | Electric protect | |
| Flame Arrester Structure | Fence Type | |
| Rated Rolling Speed(r/min) | 2200 | |
| Rated Power(kw) | 50 | |
| Min. No-live load Speed(Idling)(r/min) | 750 | |
| Max. Torque(N.m)/speed(r/min) | 250/1600 | |
| Min. Working Speed(r/min)/Torque(N.m) | 1300/184 | |
| Max. No-live Load Speed(r/min) | 2390 | |
| Net Weight(kg) | 320 | |
| Emission Level | Non-Road Eur.III | |
| Dimension(LxWxH) | 785x793x718 mm | |
| Cooling Form | enclosed water cooling form | |
| Lubrication Mode | Combined Type(Pressure,Splash) | |
Products Feasures:
1. Provide explosion-proof power source for petroleum, chemical industry and chemical industry.
2. Power equipment for transporting equipment in the space where flammable gas and steam exist continuously.
3. It can be used as a power machine for a separate unit

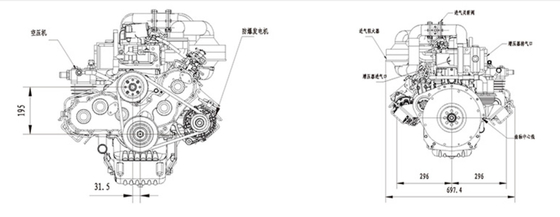

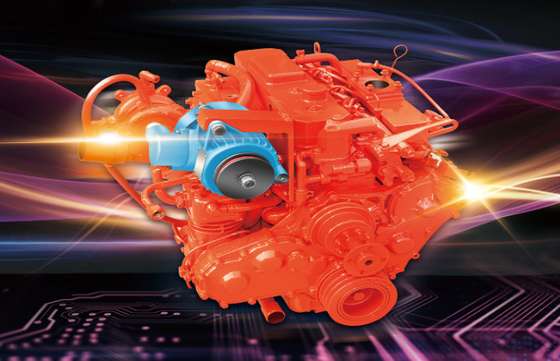

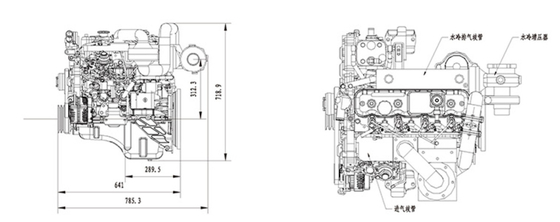

Products HD pictures:
Company Profile:
Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.
From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.
We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.
Packing and Shipping:
FQA:
Q:How about the warranty?
A:One year
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed
Q:How about shipping ?
A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,
Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A: Almost 3000 units
Q: How about your product After-sales service system?
A: Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What's is your MOQ order?
A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.
Q:Which country do you have exported to?
A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
