Product Details:
|
| Type: | Explosion-proof Diesel Type | Working Form: | 4cylinder Water Cooling 4 Stroke |
|---|---|---|---|
| Fuel Type: | Light Diesel | Cyliner Number: | 4pcs |
| Cylinder Dia.x Stroke(mm): | 94*100mm | Cylinder Liner Type: | Wet |
| Rated. Power/Speed: | 50±2kw/2200rpm | Max. Torque/Speed: | 250N.m/1600rpm |
| Displacement: | 2.8L | Emission Level: | Eur.III (Non-road) |
| Cooling Form: | Water Cooling | Starting Voltage: | 24V |
| Starting Form: | Electrical/Pneumatic | Protect Form: | Electric Protection Device |
| High Light: | Diesel Engine 50KW,Class I Explosion Proof Engine,Coal Mining Diesel Engine |
||
Class I Explosion Proof Engine Diesel Engine 50KW For Coal Mining
Diesel Exposion Proof Engine product Detailed Specification:
| Model | KC493DZL(D,Q)FB | |
| Type | Inline-Four, water-cooling,four stroke | |
| Firing Order | 1-3-4-2 | |
| Cyliner N.x bore (mm) xStroke(mm) | 4x91x100 | |
| Total Piston Displacement | 2.8 | |
| Cylinder Liner Type | Wet | |
| Oil Working Pressure(kPa) | 70-400 | |
| Starting Form | Electric/ Pneumatic | |
| Protect Form | Electric protect | |
| Flame Arrester Structure | Fence Type | |
| Rated Rolling Speed(r/min) | 2200 | |
| Rated Power(kw) | 50 | |
| Min. No-live load Speed(Idling)(r/min) | 750 | |
| Max. Torque(N.m)/speed(r/min) | 250/1600 | |
| Min. Working Speed(r/min)/Torque(N.m) | 1300/184 | |
| Max. No-live Load Speed(r/min) | 2390 | |
| Net Weight(kg) | 320 | |
| Emission Level | Non-Road Eur.III | |
| Dimension(LxWxH) | 785x793x718 mm | |
| Cooling Form | enclosed water cooling form | |
| Lubrication Mode | Combined Type(Pressure,Splash) | |
Products Description:
Kc493 explosion-proof diesel engine, if need, should be repaired as follows: grind (replace) the valve and adjust the valve clearance. Adjust the fuel supply advance angle, adjust the fuel injection pressure, and replace the fuel injection nozzle and plunger if necessary. Check the cylinder pressure and replace the piston ring if necessary. Adjust the clearance of main bearing (connecting rod bearing) and replace the bearing if necessary

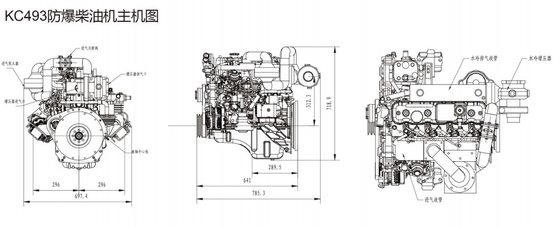

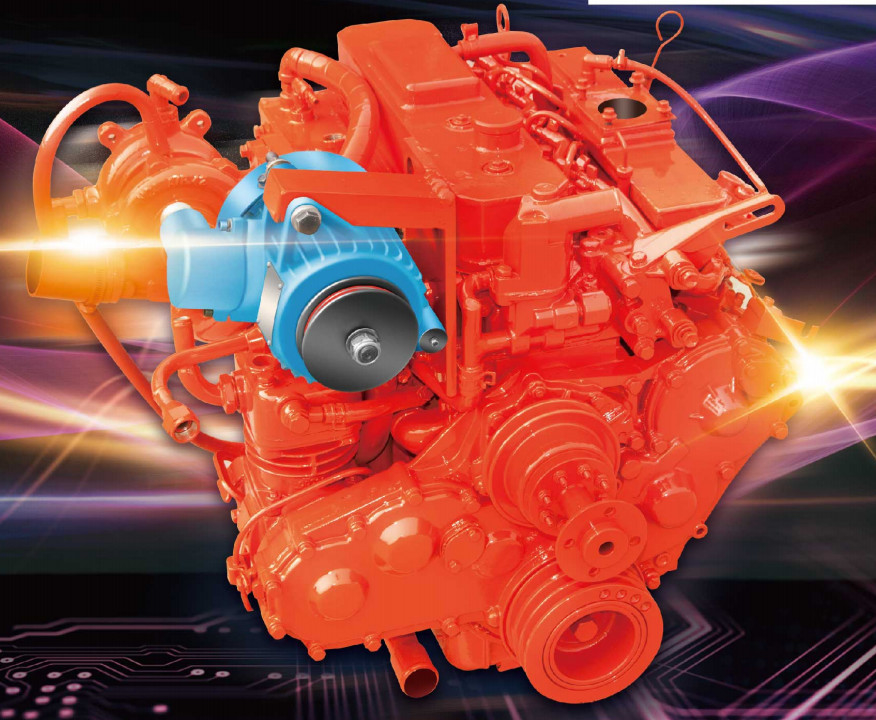

Products HD pictures:
