EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity

Certification
China Wuhan ESSENCE Technology Co., Ltd certification
China Wuhan ESSENCE Technology Co., Ltd certification
I'm Online Chat Now

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity
EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity

Large Image :  EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity

Product Details:
Place of Origin: CHINA
Brand Name: KaiYun
Certification: L7E, EEC, LSV
Model Number: Kai Classic 4kw
Payment & Shipping Terms:
Minimum Order Quantity: 3units
Price: USD3500~6000
Packaging Details: naked and protected with films
Delivery Time: 20days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 150000pcs/year

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity

Description
Overall Size: 3475×1375×1550mm Wheel Base: 2315mm
Cabin Type: Single Row Type, 2passengers Max. Climbing Ability: 20%
Curb Weight: 710kg Payload: 500kg
Max. Towing Capacity: 2000kg Highest Speed: 40-45km/h
Endurance Mileage: 120KM Min. Ground Clearance: >150mm
Motor Type: AC Rated Power: 4KW
Battery Type: Lead Acid AGM Battery Voltage: 72V / 100Ah
High Light:

EU Standard Compact Electric Pickup Truck

,

Compact Electric Pickup Truck 2000KG

EU standard ELectric Small Pickup Truck, fully Electric Pickup, 2000KG Towing capacity cargo truck



Product Detailed Specification:

Models Classic 4kW
BASIC SPECS
VEHICLE DIMENSIONS
LxWxH (mm) 3475x1375x1550mm
Wheelbase (mm) 2315
Cargo box dimension 1620x1245x300mm
Vehicle Gross Weight (kg) 710
Payload (kg) 500
Towing Capacity (kg) 2,000
Passengers 2people
PERFORMANCE
Top Speed (km/h ) 40 ~45
Maximum Grade (%) 20
Minimum Turning Radius (m ) ≤9
Minimum Ground Clearance (mm) ≥150
Approach Angle ≥55
Departure Angle ≥35
BATTERY & MOTOR
Battery Specs 72V / 100Ah
Battery Type Lead Acid AGM
Charging Time 8~10h
Maximum Driving Range (km/m) 120 / 74.57
Motor Type AC
Rated Power 4kW
Motor Controller CAN
BODY STRUCTURE
Cabin Body Stamped Sheet Metal
Single Row
CHASSIS & WHEELS
Drive Type Rear Wheel Drive
Front Suspension Double Wishbone Independent Suspension
Rear Suspension Leaf Plate Suspension (5 pieces)
Drive Axle Integrated (Speed ratio12.76)
Brake (front/rear) Discs / Drums
Wheel Hub 12X4B(Steelies 4X114.3)
Tire Specification 145 R12LT
Steering Type Rack & Pinion
Steering Assist
Brake Assist



Products Features:

- "Shape reflects function" -- this is the design concept of pickman'

- Under the fine and reasonable structure, the body shape of pickman has reached the golden ratio, and the

  overall posture is stable and dynamic.

- The use of new materials allows us to better "subtract" - the reduction in the number of parts makes you feel

  that it is "complete", the body is light and strong, and it can run farther, and you do not need to worry about safety.

- As a professional all terrain electric pickup, the intelligent control system and super strong motor configuration

  enable pickman to have a strong "heart". Together with the platform "Tiangong" four-wheel independent suspension

  system, it brings outstanding power and smooth driving experience

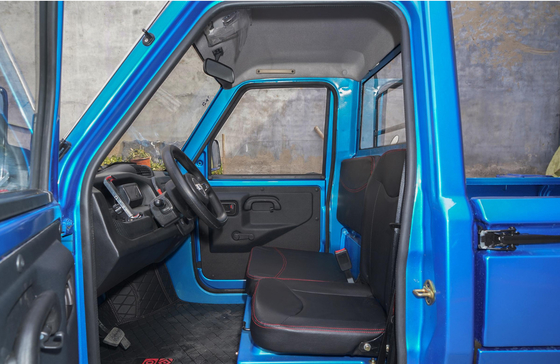

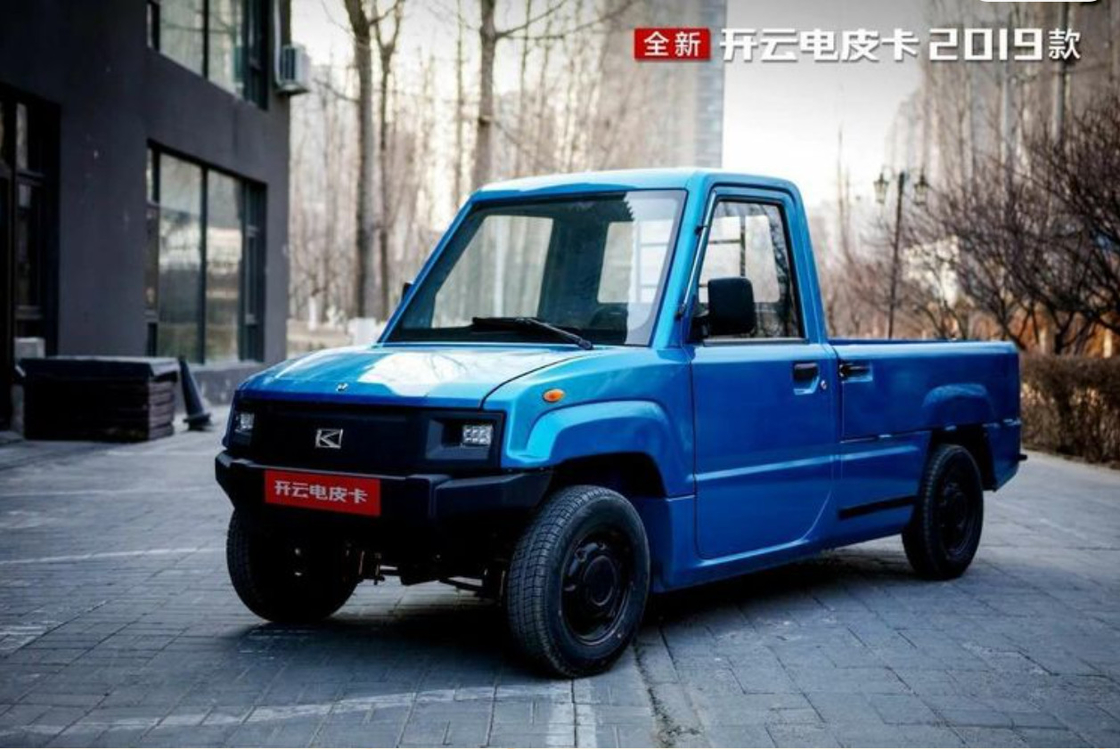

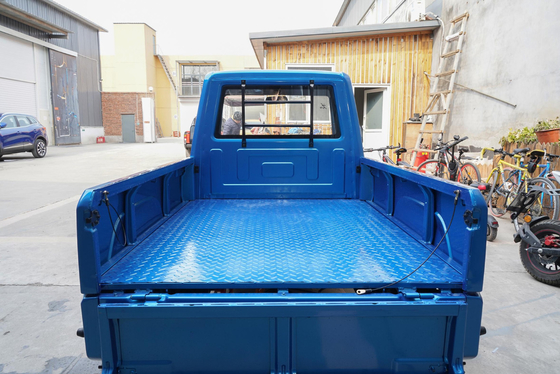

Products HD pictures:

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 0

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 1EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 2EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 3EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 4





EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 5



Reference Vedio"

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 6

Customers View:

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 7



Company Profile:

Wuhan Essence Tech Co.,Ltd is a trading comany who has been focus on Automotive exporting more than 5years. We cooperates deeply with many big and famous Manufacturers of Vehicle sush as DONGFENG, Changan, Chuanqi and Chevrolet, on the sales of their Passenger cars, commercial cars and also the special use vehicles. Basing on the hard work during past years, we have successfully exported the full series vehicle of these brands to Egypt, Colombia, Kazakhstan, Russia, Algeria, Lebanon, Sudan and Jordan etc. countries which have gained good reputation locally. It has gained a good reputation locally.



From the first day of setting up, we always adhered to the to the principle of "providing customers with cost-effective products" and the concept of " Win-Win with Customers", to make more people around the world to know, to understand, recognize and support Chinese Vehicles.



We adopt 5A mode management , control the products quality strictly, set up the complete sourcing and supplying system, to make sure our customers can be served with the shortest delivery time, most competitive price and best quantity vehicles. Now, at this moment of the alternation of new and old energy vehicles, we are willing to cooperate with the cooperators all over the world to create our new time together.



Packing and Shipping:

EU Standard Compact Electric Pickup Truck 2000KG Towing Capacity 8





FAQ:



Q:How about the warranty?

A:One year for motor and battery.

Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days after order confrimed

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 150000 units

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
